Documentation for Standard Elevator Information Schema
Definition Type: Element
Name: Group
Type: GroupDynamicData
Containing Schema: LiftInfo.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

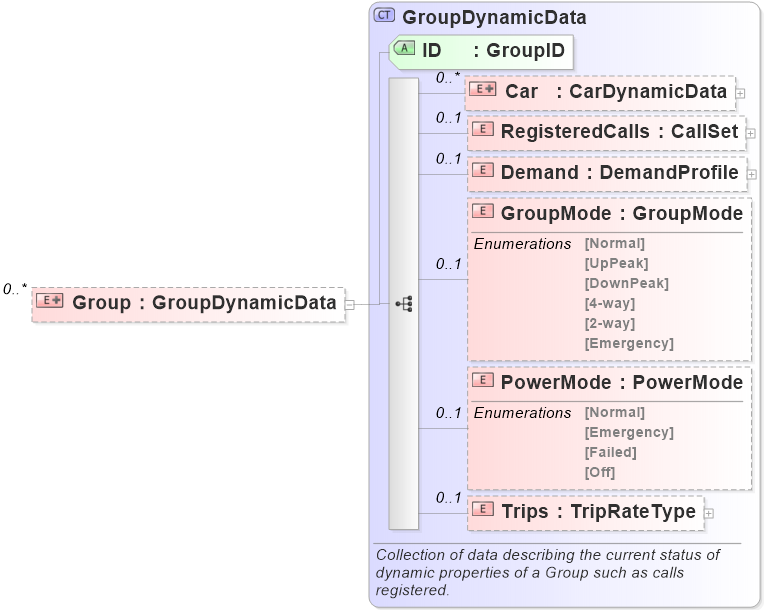

Collapse XSD Schema Diagram:
Drilldown into Trips Drilldown into PowerMode Drilldown into GroupMode Drilldown into Demand Drilldown into RegisteredCalls Drilldown into Car Drilldown into ID Drilldown into GroupDynamicDataXSD Diagram of Group
Collapse XSD Schema Code:
<xs:element name="Group" minOccurs="0" maxOccurs="unbounded">
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="GroupDynamicData" />
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Car Car 0 unbounded
RegisteredCalls RegisteredCalls 0 (1)
Demand Demand 0 (1)
GroupMode GroupMode 0 (1)
PowerMode PowerMode 0 (1)
Trips Trips 0 1
Collapse Child Attributes:
Name Type Default Value Use
ID ID Required
Collapse Derivation Tree:
