Documentation for Standard Elevator Information Schema
Definition Type: Element
Name: Car
Type: CarDynamicData
Containing Schema: LiftInfo.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

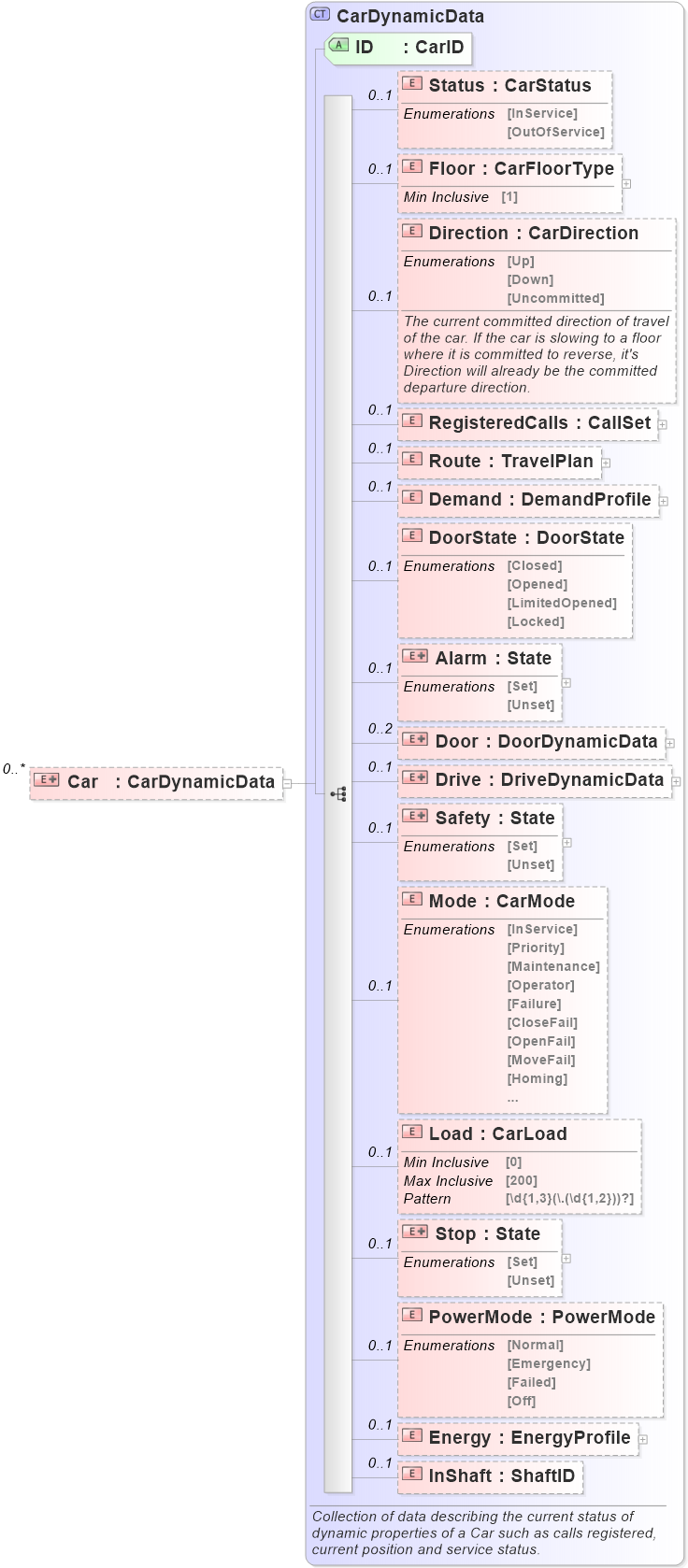

Collapse XSD Schema Diagram:
Drilldown into InShaft Drilldown into Energy Drilldown into Stop Drilldown into Load Drilldown into Mode Drilldown into Safety Drilldown into Drive Drilldown into Door Drilldown into Alarm Drilldown into DoorState Drilldown into Demand Drilldown into Route Drilldown into RegisteredCalls Drilldown into Direction Drilldown into Floor Drilldown into Status Drilldown into ID Drilldown into CarDynamicDataXSD Diagram of Car
Collapse XSD Schema Code:
<xs:element name="Car" minOccurs="0" maxOccurs="unbounded">
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="CarDynamicData" />
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Status Status 0 (1)
Floor Floor 0 (1)
Direction Direction 0 (1)
RegisteredCalls RegisteredCalls 0 (1)
Route Route 0 (1)
Demand Demand 0 (1)
DoorState DoorState 0 (1)
Alarm Alarm 0 (1)
Door Door 0 2
Drive Drive 0 (1)
Safety Safety 0 (1)
Mode Mode 0 (1)
Load Load 0 (1)
Stop Stop 0 (1)
Energy Energy 0 (1)
InShaft InShaft 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
ID ID Required
Collapse Derivation Tree:
