Documentation for Standard Elevator Information Schema
Definition Type: ComplexType
Name: FloorRateType
Containing Schema: LiftInfo.xsd
Abstract
Documentation:
Rate of departures, in terms of the number of departures (in a direction or to a destination floor(set) ) from one or more floors over one or more periods of time.

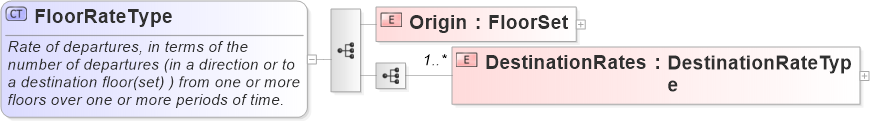

Collapse XSD Schema Diagram:
Drilldown into DestinationRates Drilldown into OriginXSD Diagram of FloorRateType
Collapse XSD Schema Code:
<xs:complexType name="FloorRateType">
    <xs:annotation>
        <xs:documentation>Rate of departures, in terms of the number of departures (in a direction or to a destination floor(set) ) from one or more floors over one or more periods of time.</xs:documentation>
    </xs:annotation>
    <xs:sequence>
        <xs:element name="Origin" type="FloorSet" />
        <xs:sequence>
            <xs:element name="DestinationRates" type="DestinationRateType" minOccurs="1" maxOccurs="unbounded" />
        </xs:sequence>
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Origin Origin (1) (1)
DestinationRates DestinationRates 1 unbounded
Collapse Derivation Tree:
Collapse References:
FloorRates, FloorRatesFloorSetDemandRate, Sample,
