Documentation for Standard Elevator Information Schema
Definition Type: Element
Name: FloorRates
Containing Schema: LiftInfo.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Collapse XSD Schema Diagram:

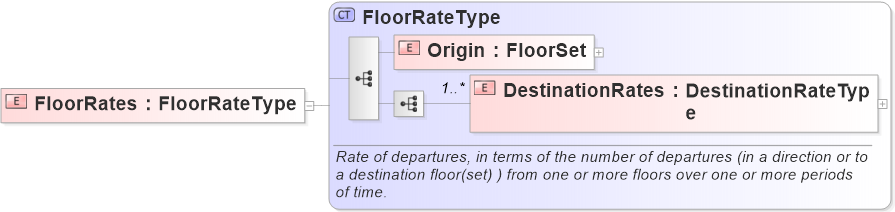

Drilldown into FloorSetDemandRateXSD Diagram of FloorRates
Collapse XSD Schema Code:
<xs:element name="FloorRates">
    <xs:complexType>
        <xs:sequence>
            <xs:element name="FloorSetDemandRate" maxOccurs="unbounded">
                <xs:complexType>
                    <xs:sequence>
                        <xs:element name="DestinationRate">
                            <xs:complexType>
                                <xs:choice>
                                    <xs:element name="FloorRate" maxOccurs="unbounded">
                                        <xs:complexType>
                                            <xs:attribute name="Floor" type="FloorNumber" use="required" />
                                            <xs:attribute name="Rate" type="xs:integer" use="required" />
                                        </xs:complexType>
                                    </xs:element>
                                    <xs:element name="DirectionRate" maxOccurs="2">
                                        <xs:complexType>
                                            <xs:attribute name="Direction" type="Direction" use="required" />
                                            <xs:attribute name="Rate" type="xs:integer" use="required" />
                                        </xs:complexType>
                                    </xs:element>
                                </xs:choice>
                            </xs:complexType>
                        </xs:element>
                        <xs:element name="Floors" type="FloorSet" />
                    </xs:sequence>
                </xs:complexType>
            </xs:element>
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
FloorSetDemandRate FloorSetDemandRate (1) unbounded
