Documentation for Standard Elevator Information Schema
Definition Type: Element
Name: FloorSetDemandRate
Containing Schema: LiftInfo.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Collapse XSD Schema Diagram:

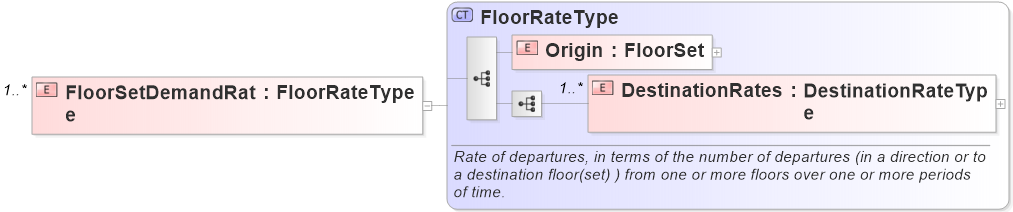

Drilldown into Floors Drilldown into DestinationRateXSD Diagram of FloorSetDemandRate
Collapse XSD Schema Code:
<xs:element name="FloorSetDemandRate" maxOccurs="unbounded">
    <xs:complexType>
        <xs:sequence>
            <xs:element name="DestinationRate">
                <xs:complexType>
                    <xs:choice>
                        <xs:element name="FloorRate" maxOccurs="unbounded">
                            <xs:complexType>
                                <xs:attribute name="Floor" type="FloorNumber" use="required" />
                                <xs:attribute name="Rate" type="xs:integer" use="required" />
                            </xs:complexType>
                        </xs:element>
                        <xs:element name="DirectionRate" maxOccurs="2">
                            <xs:complexType>
                                <xs:attribute name="Direction" type="Direction" use="required" />
                                <xs:attribute name="Rate" type="xs:integer" use="required" />
                            </xs:complexType>
                        </xs:element>
                    </xs:choice>
                </xs:complexType>
            </xs:element>
            <xs:element name="Floors" type="FloorSet" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DestinationRate DestinationRate (1) (1)
Floors Floors (1) (1)
