Documentation for Standard Elevator Information Schema
Definition Type: ComplexType
Name: ResponseType
Containing Schema: LiftInfo.xsd
Abstract
Documentation:
Characterisation of the quality of response provided for a specific demand.

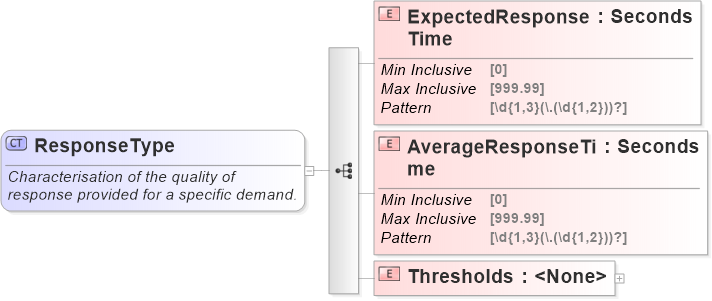

Collapse XSD Schema Diagram:
Drilldown into Thresholds Drilldown into AverageResponseTime Drilldown into ExpectedResponseTimeXSD Diagram of ResponseType
Collapse XSD Schema Code:
<xs:complexType name="ResponseType">
    <xs:annotation>
        <xs:documentation>Characterisation of the quality of response provided for a specific demand.</xs:documentation>
    </xs:annotation>
    <xs:sequence>
        <xs:element name="ExpectedResponseTime" type="Seconds" />
        <xs:element name="AverageResponseTime" type="Seconds" />
        <xs:element name="Thresholds">
            <xs:complexType>
                <xs:attribute name="ThresholdConstant" type="xs:integer" use="required" />
                <xs:attribute name="HiThresholdTime" type="Seconds" use="optional" />
                <xs:attribute name="ThresholdLoad" type="xs:integer" use="optional" />
            </xs:complexType>
        </xs:element>
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ExpectedResponseTime ExpectedResponseTime (1) (1)
AverageResponseTime AverageResponseTime (1) (1)
Thresholds Thresholds (1) (1)
Collapse Derivation Tree:
Collapse References:
ResponseQuality, ResponseQuality
