Documentation for Standard Elevator Information Schema
Definition Type: Element
Name: Thresholds
Containing Schema: LiftInfo.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

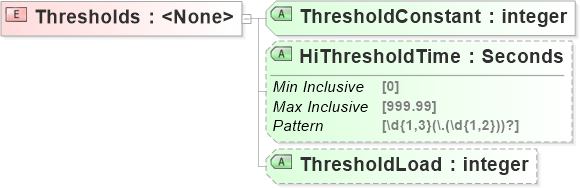

Collapse XSD Schema Diagram:
Drilldown into ThresholdLoad Drilldown into HiThresholdTime Drilldown into ThresholdConstantXSD Diagram of Thresholds
Collapse XSD Schema Code:
<xs:element name="Thresholds">
    <xs:complexType>
        <xs:attribute name="ThresholdConstant" type="xs:integer" use="required" />
        <xs:attribute name="HiThresholdTime" type="Seconds" use="optional" />
        <xs:attribute name="ThresholdLoad" type="xs:integer" use="optional" />
    </xs:complexType>
</xs:element>
Collapse Child Attributes:
Name Type Default Value Use
ThresholdConstant ThresholdConstant Required
HiThresholdTime HiThresholdTime Optional
ThresholdLoad ThresholdLoad Optional
