Documentation for Standard Elevator Information Schema
Definition Type: Element
Name: Group
Type: GroupStaticData
Containing Schema: LiftInfo.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

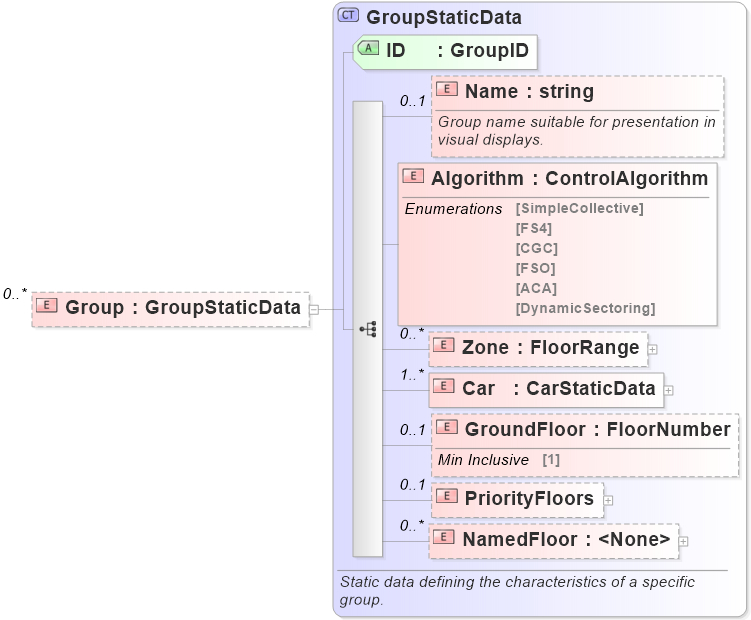

Collapse XSD Schema Diagram:
Drilldown into NamedFloor Drilldown into PriorityFloors Drilldown into GroundFloor Drilldown into Car Drilldown into Zone Drilldown into Algorithm Drilldown into Name Drilldown into ID Drilldown into GroupStaticDataXSD Diagram of Group
Collapse XSD Schema Code:
<xs:element name="Group" type="GroupStaticData" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Name Name 0 (1)
Algorithm Algorithm (1) (1)
Zone Zone 0 unbounded
Car Car (1) unbounded
GroundFloor GroundFloor 0 (1)
PriorityFloors PriorityFloors 0 (1)
NamedFloor NamedFloor 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
ID ID Required
Collapse Derivation Tree:
Documentation for Standard Elevator Information Schema
Generated using Liquid XML 2015 Editor Edition 13.2.3.6018
