Documentation for Standard Elevator Information Schema
Definition Type: Element
Name: DriveOvertravelException
Type: ExceptionType
Containing Schema: LiftInfo.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

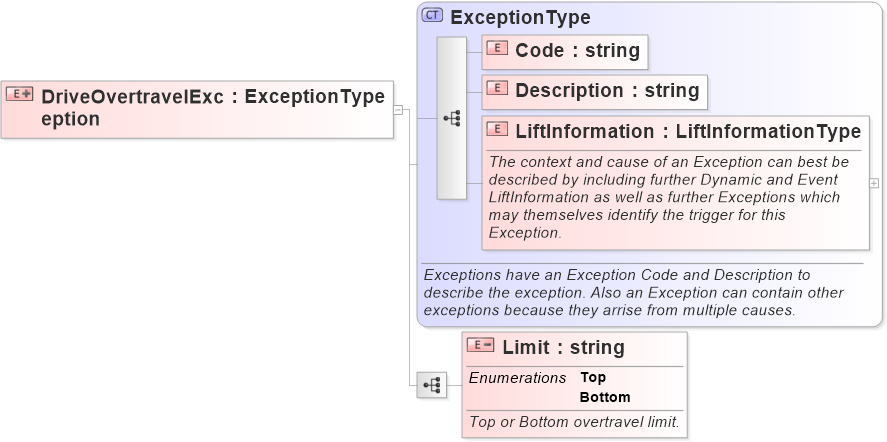

Collapse XSD Schema Diagram:
Drilldown into Limit Drilldown into LiftInformation Drilldown into Description Drilldown into Code Drilldown into ExceptionTypeXSD Diagram of DriveOvertravelException
Collapse XSD Schema Code:
<xs:element name="DriveOvertravelException">
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="ExceptionType">
                <xs:sequence>
                    <xs:element name="Limit">
                        <xs:annotation>
                            <xs:documentation>Top or Bottom overtravel limit.</xs:documentation>
                        </xs:annotation>
                        <xs:simpleType>
                            <xs:restriction base="xs:string">
                                <xs:enumeration value="Top" />
                                <xs:enumeration value="Bottom" />
                            </xs:restriction>
                        </xs:simpleType>
                    </xs:element>
                </xs:sequence>
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Code Code (1) (1)
Description Description (1) (1)
LiftInformation LiftInformation (1) (1)
Limit Limit (1) (1)
Collapse Derivation Tree:
