Documentation for Standard Elevator Information Schema
Definition Type: Element
Name: Timing
Containing Schema: LiftInfo.xsd
MinOccurs 0
MaxOccurs 1
Abstract

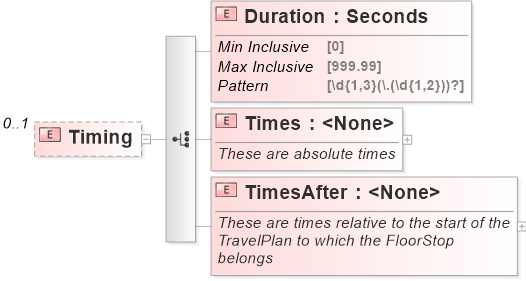

Collapse XSD Schema Diagram:
Drilldown into TimesAfter Drilldown into Times Drilldown into DurationXSD Diagram of Timing
Collapse XSD Schema Code:
<xs:element name="Timing" minOccurs="0" maxOccurs="1">
    <xs:complexType>
        <xs:choice>
            <xs:element name="Duration" type="Seconds" />
            <xs:element name="Times">
                <xs:annotation>
                    <xs:documentation>These are absolute times</xs:documentation>
                </xs:annotation>
                <xs:complexType>
                    <xs:attribute name="ArrivalTime" type="xs:dateTime" use="required" />
                    <xs:attribute name="DepartureTime" type="xs:dateTime" use="optional" />
                </xs:complexType>
            </xs:element>
            <xs:element name="TimesAfter">
                <xs:annotation>
                    <xs:documentation>These are times relative to the start of the TravelPlan to which the FloorStop belongs</xs:documentation>
                </xs:annotation>
                <xs:complexType>
                    <xs:attribute name="ArrivalTime" type="Seconds" use="required" />
                    <xs:attribute name="DepartureTime" type="Seconds" use="optional" />
                </xs:complexType>
            </xs:element>
        </xs:choice>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Duration Duration (1) (1)
Times Times (1) (1)
TimesAfter TimesAfter (1) (1)
