Documentation for Standard Elevator Information Schema
Definition Type: Element
Name: PassengersExiting
Containing Schema: LiftInfo.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
Passengers exiting the car at the floor (assume passengers exit before any enter)

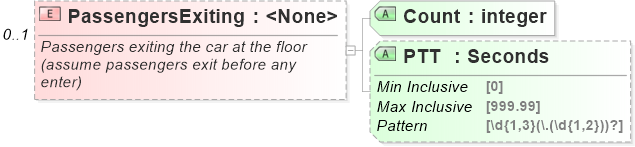

Collapse XSD Schema Diagram:
Drilldown into PTT Drilldown into CountXSD Diagram of PassengersExiting
Collapse XSD Schema Code:
<xs:element name="PassengersExiting" minOccurs="0" maxOccurs="1">
    <xs:annotation>
        <xs:documentation>Passengers exiting the car at the floor (assume passengers exit before any enter)</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:attribute name="Count" type="xs:integer" use="required" />
        <xs:attribute name="PTT" type="Seconds" use="optional" />
    </xs:complexType>
</xs:element>
Collapse Child Attributes:
Name Type Default Value Use
Count Count Required
PTT PTT Optional
