Documentation for Standard Elevator Information Schema
Definition Type: AttributeGroup
Name: OperationCount
Containing Schema: LiftInfo.xsd
Documentation:
A count of the number operations since a specified start time-date.

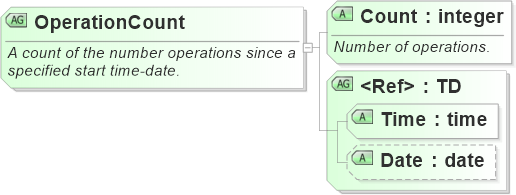

Collapse XSD Schema Diagram:
Drilldown into Date Drilldown into Time Drilldown into TD Drilldown into CountXSD Diagram of OperationCount
Collapse XSD Schema Code:
<xs:attributeGroup name="OperationCount">
    <xs:annotation>
        <xs:documentation>A count of the number operations since a specified start time-date.</xs:documentation>
    </xs:annotation>
    <xs:attribute name="Count" type="xs:integer" use="required">
        <xs:annotation>
            <xs:documentation>Number of operations.</xs:documentation>
        </xs:annotation>
    </xs:attribute>
    <xs:attributeGroup ref="TD" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
Count Count Required
Time Time Required
Date Date Optional
