Definition Type: Element
Name: Location
Containing Schema: LiftInfo.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Location of temperature sensor.

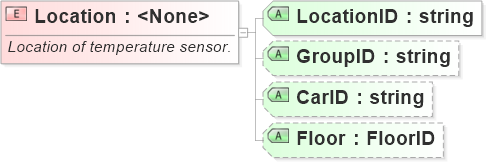

Collapse XSD Schema Diagram:
Drilldown into Floor Drilldown into CarID Drilldown into GroupID Drilldown into LocationIDXSD Diagram of Location
Collapse XSD Schema Code:
<xs:element name="Location">
    <xs:annotation>
        <xs:documentation>Location of temperature sensor.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:attribute name="LocationID" type="xs:string" use="required" />
        <xs:attribute name="GroupID" type="xs:string" use="optional" />
        <xs:attribute name="CarID" type="xs:string" use="optional" />
        <xs:attribute name="Floor" type="FloorID" use="optional" />
    </xs:complexType>
</xs:element>
Collapse Child Attributes:
Name Type Default Value Use
LocationID LocationID Required
GroupID GroupID Optional
CarID CarID Optional
Floor Floor Optional
