Documentation for Standard Elevator Information Schema
Definition Type: Element
Name: InServiceEvent
Containing Schema: LiftInfo.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

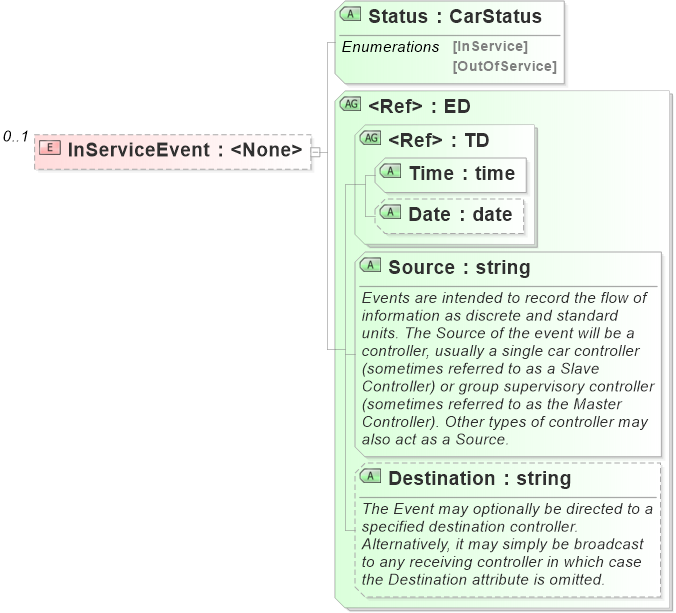

Collapse XSD Schema Diagram:
Drilldown into Destination Drilldown into Source Drilldown into Date Drilldown into Time Drilldown into TD Drilldown into ED Drilldown into StatusXSD Diagram of InServiceEvent
Collapse XSD Schema Code:
<xs:element name="InServiceEvent" minOccurs="0">
    <xs:complexType>
        <xs:attribute name="Status" type="CarStatus" use="required" />
        <xs:attributeGroup ref="ED" />
    </xs:complexType>
</xs:element>
Collapse Child Attributes:
Name Type Default Value Use
Status Status Required
Time Time Required
Date Date Optional
Source Source Required
Destination Destination Optional
