Documentation for Standard Elevator Information Schema
Definition Type: Element
Name: DoorCycle
Type: DoorCycle
Containing Schema: LiftInfo.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

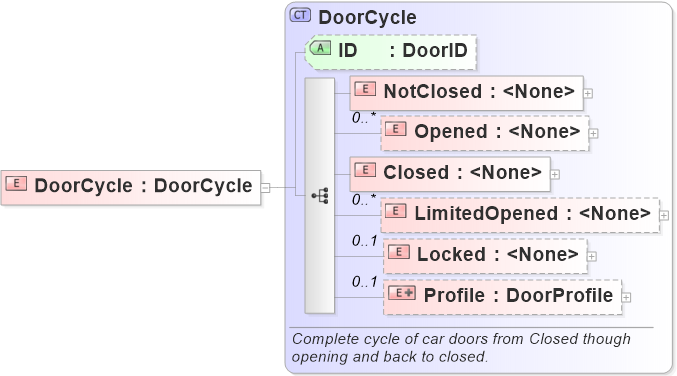

Collapse XSD Schema Diagram:
Drilldown into Profile Drilldown into Locked Drilldown into LimitedOpened Drilldown into Closed Drilldown into Opened Drilldown into NotClosed Drilldown into ID Drilldown into DoorCycleXSD Diagram of DoorCycle
Collapse XSD Schema Code:
<xs:element name="DoorCycle" type="DoorCycle" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
NotClosed NotClosed (1) (1)
Opened Opened 0 unbounded
Closed Closed (1) (1)
LimitedOpened LimitedOpened 0 unbounded
Locked Locked 0 (1)
Profile Profile 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
ID ID (Optional)
Collapse Derivation Tree:
