Documentation for Standard Elevator Information Schema
Definition Type: Element
Name: Door
Type: DoorDynamicData
Containing Schema: LiftInfo.xsd
MinOccurs (1)
MaxOccurs 2
Abstract

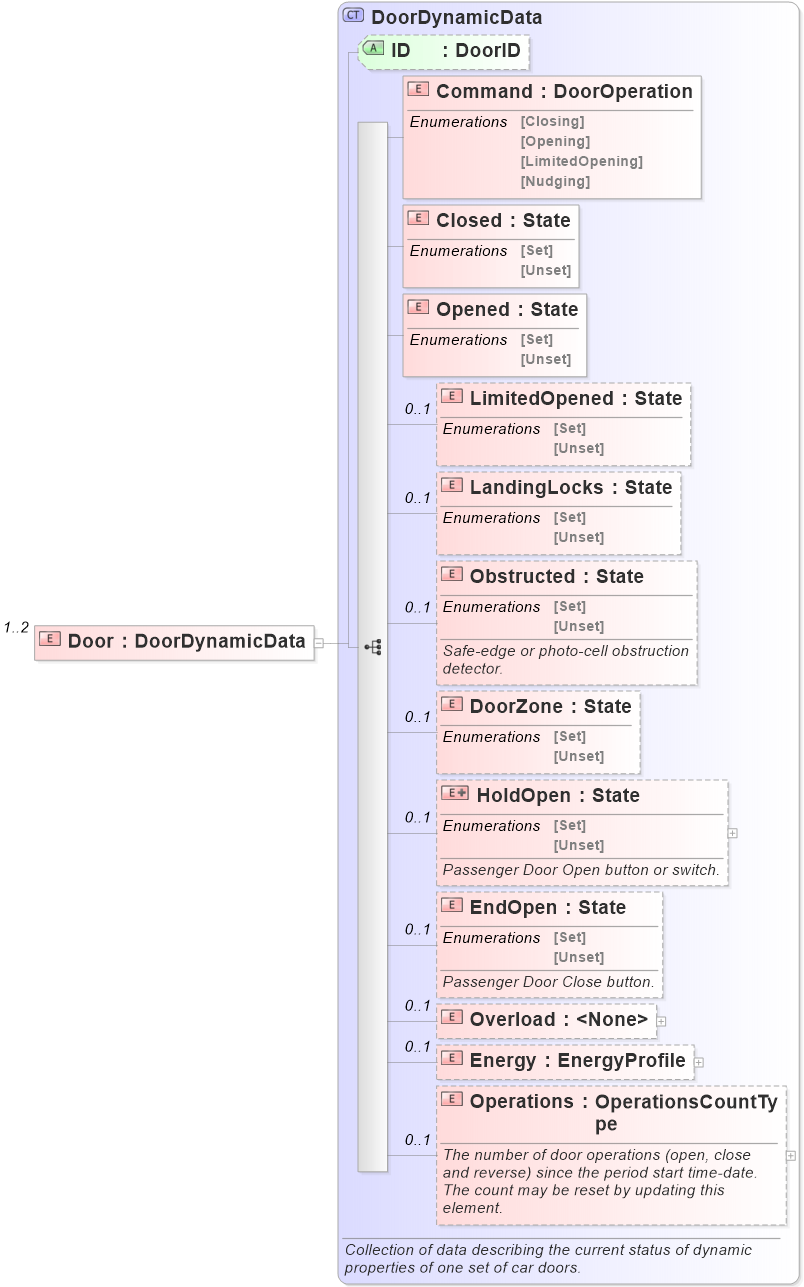

Collapse XSD Schema Diagram:
Drilldown into Operations Drilldown into Energy Drilldown into Overload Drilldown into EndOpen Drilldown into HoldOpen Drilldown into DoorZone Drilldown into Obstructed Drilldown into LandingLocks Drilldown into LimitedOpened Drilldown into Opened Drilldown into Closed Drilldown into Command Drilldown into ID Drilldown into DoorDynamicDataXSD Diagram of Door
Collapse XSD Schema Code:
<xs:element name="Door" type="DoorDynamicData" maxOccurs="2" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Command Command (1) (1)
Closed Closed (1) (1)
Opened Opened (1) (1)
LimitedOpened LimitedOpened 0 (1)
LandingLocks LandingLocks 0 (1)
Obstructed Obstructed 0 (1)
DoorZone DoorZone 0 (1)
HoldOpen HoldOpen 0 (1)
EndOpen EndOpen 0 (1)
Overload Overload 0 (1)
Energy Energy 0 (1)
Operations Operations 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
ID ID Optional
Collapse Derivation Tree:
