Documentation for Standard Elevator Information Schema
Definition Type: Element
Name: CallCycle
Type: CallCycle
Containing Schema: LiftInfo.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

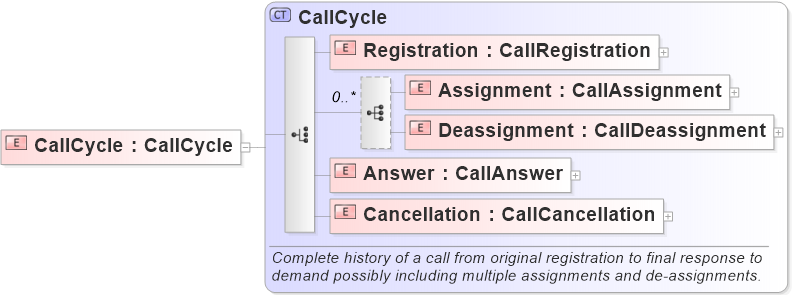

Collapse XSD Schema Diagram:
Drilldown into Cancellation Drilldown into Answer Drilldown into Deassignment Drilldown into Assignment Drilldown into Registration Drilldown into CallCycleXSD Diagram of CallCycle
Collapse XSD Schema Code:
<xs:element name="CallCycle" type="CallCycle" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Registration Registration (1) (1)
Assignment Assignment (1) (1)
Deassignment Deassignment (1) (1)
Answer Answer (1) (1)
Cancellation Cancellation (1) (1)
Collapse Derivation Tree:
