Documentation for Standard Elevator Information Schema
Definition Type: ComplexType
Name: CallAnswer
Containing Schema: LiftInfo.xsd
Abstract
Documentation:
Car arrives in response to a call and accepts passenger(s).

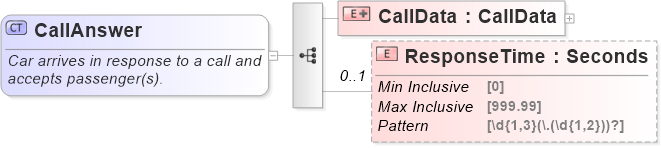

Collapse XSD Schema Diagram:
Drilldown into ResponseTime Drilldown into CallDataXSD Diagram of CallAnswer
Collapse XSD Schema Code:
<xs:complexType name="CallAnswer">
    <xs:annotation>
        <xs:documentation>Car arrives in response to a call and accepts passenger(s).</xs:documentation>
    </xs:annotation>
    <xs:sequence>
        <xs:element name="CallData">
            <xs:complexType>
                <xs:complexContent>
                    <xs:extension base="CallData" />
                </xs:complexContent>
            </xs:complexType>
        </xs:element>
        <xs:element name="ResponseTime" type="Seconds" minOccurs="0" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CallData CallData (1) (1)
ResponseTime ResponseTime 0 (1)
Collapse Derivation Tree:
Collapse References:
Answer, Answer
